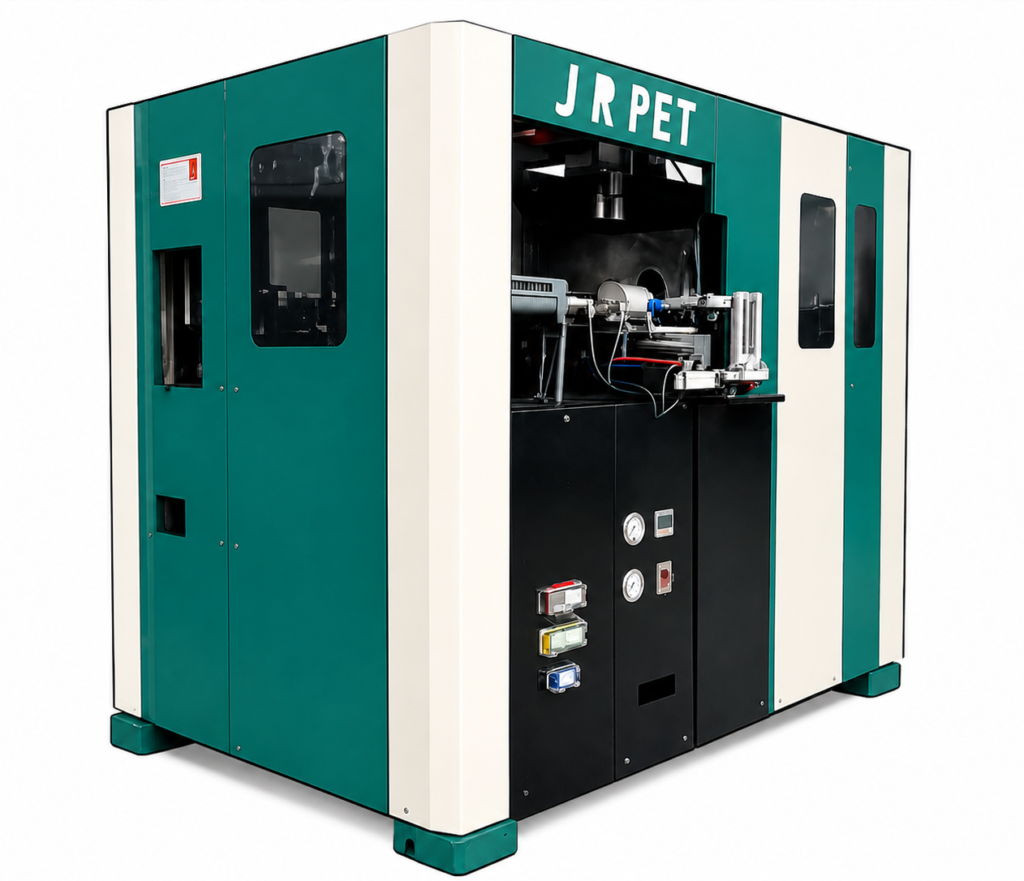

Fully Automatic Handfeed Series
High-Performance PET Bottle Blow Moulding Machine
Our Fully Automatic Handfeed Series is designed to deliver exceptional performance, precision, and reliability for PET bottle manufacturing. Built with advanced automation and robust engineering, this machine ensures consistent bottle quality while reducing production downtime and maintenance costs. It is ideal for producing PET bottles ranging from 50 ml to 2000 ml for industries such as packaged drinking water, beverages, edible oil, pharmaceuticals, chemicals, and more.
Key Features
- ✔ Precision Linear Rail Guide System for smooth, vibration-free machine operation.
- ✔ Advanced Infrared Heating System with PID Temperature Control for uniform preform heating.
- ✔ High-speed production with excellent energy efficiency.
- ✔ Fully pneumatic clamping mechanism for reliable and stable operation.
- ✔ Strong Toggle Clamping System ensures accurate mould locking.
- ✔ Automatic temperature control for consistent bottle quality.
- ✔ User-friendly control panel for easy machine operation.
- ✔ Heavy-duty modular structure for long machine life.
- ✔Low maintenance design with quick access to service components.
- ✔Easy mould changing system for faster production changeovers.
- ✔ UPS power backup support to minimize production losses.
- ✔Suitable for manufacturing PET bottles from 50 ml to 2000 ml.
Applications
The Auto Drop Series is ideal for manufacturing:
- Packaged Drinking Water Bottles
- Mineral Water Bottles
- Soft Drink Bottles
- Juice Bottles
- Edible Oil Bottles
- Pharmaceutical Bottles
- Cosmetic Bottles
- Chemical Containers
Why Choose JR PET Industries?
- High Production Efficiency
- Low Power Consumption
- Minimal Maintenance
- Durable Industrial Construction
- Easy Operation
- Reliable After-Sales Support
- Custom Machine Solutions
- Pan-India Installation & Service
Technical Specification
| Model | Unit | JR-HF-2C-2400 | JR-HF-4C-4000 | JR-HF-6C-6000 |
|---|---|---|---|---|
| Cavity | PCS | 2 | 4 | 6 |
| Neck Size | MM | 28-46 | 28-46 | 28 – 46 |
| Volume Capacity | ML | 1000 | 1000 | 750 |
| Production | BPH | 2400 | 4000 | 6000 |
| Clamping Force | TON | 16 | 16 | 16 |
| Clamping Type | FULLY PNEUMATIC TOGGLE SYSTEM | |||
| Indexing Operation | SERVO ELECTRIC SYSTEM | |||
| Working Pressure | BAR/CFM | 10/25 | 10/36 | 10/45 |
| Blowing Pressure | BAR/CFM | 30/55 | 30/110 | 30/150 |
| Total Load | KW | 24 | 26 | 48 |
| Running Load | KW | 12 | 13 | 24 |
