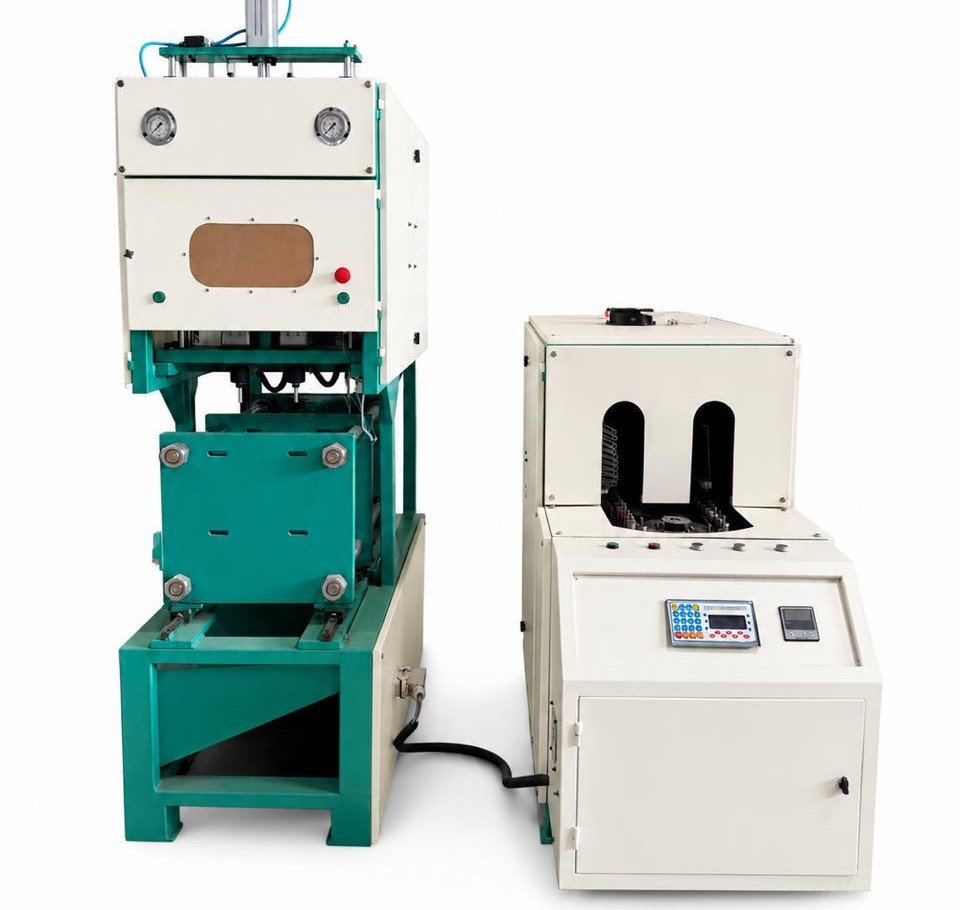

Auto Drop PET Blow Moulding Machine
High-Performance PET Bottle Blowing Machine
The JR Auto-Drop Series is designed for high-speed, precision PET bottle production. Built with advanced pneumatic technology and an energy-efficient heating system, it delivers consistent performance, reduced maintenance, and maximum production efficiency.
Key Features
- ✔ Linear Rail Guide System for smooth, frictionless & jerk-free movement.
- ✔ Infrared Heating System with PID Temperature Controller for uniform preform heating.
- ✔ Modular Machine Design for easy maintenance and longer service life.
- ✔ Fully Pneumatic Operation ensuring faster production with minimal maintenance.
- ✔ Advanced Toggle Clamping System for superior clamping force and consistent bottle quality.
- ✔ UPS Power Backup to reduce rejection during power fluctuations.
- ✔ Automatic Temperature Control for stable and accurate operation.
- ✔ Quick & Easy Mould Change System with chain mechanism.
Applications
The Auto Drop Series is ideal for manufacturing:
- Packaged Drinking Water Bottles
- Mineral Water Bottles
- Soft Drink Bottles
- Juice Bottles
- Edible Oil Bottles
- Pharmaceutical Bottles
- Chemical Containers
Why Choose JR PET Industries?
- High Production Efficiency
- Low Power Consumption
- Minimal Maintenance
- Durable Industrial Construction
- Easy Operation
- Reliable After-Sales Support
- Custom Machine Solutions
- Pan-India Installation & Service
Technical Specifications
Compare the specifications of our Auto Drop PET Blow Moulding Machines to select the ideal model for your production needs.
| Specification | JR-2CAD | JR-4CAD | JR-JAR |
|---|---|---|---|
| Cavity | 2 | 4 | 2 |
| Neck Size | 25–28 mm | 25–28 mm | 25–120 mm |
| Bottle Volume | 50–2000 ml | 50–2000 ml | 50–7000 ml |
| Production Capacity (1000 ml) | 1000–1200 BPH | 1600–2400 BPH | 800–1000 BPH |
| Clamping Force | 16 Ton | 16 Ton | 16 Ton |
| Clamping System | Toggle Type | Toggle Type | Toggle Type |
| Operation | Fully Pneumatic | Fully Pneumatic | Fully Pneumatic |
| Working Pressure | 10 Bar | 10 Bar | 10 Bar |
| Blowing Pressure | 30 Bar | 30 Bar | 30 Bar |
| Required Power | 14 kW | 14 kW | 14 kW |
| Power Consumption | 12 kW | 12 kW | 12 kW |
